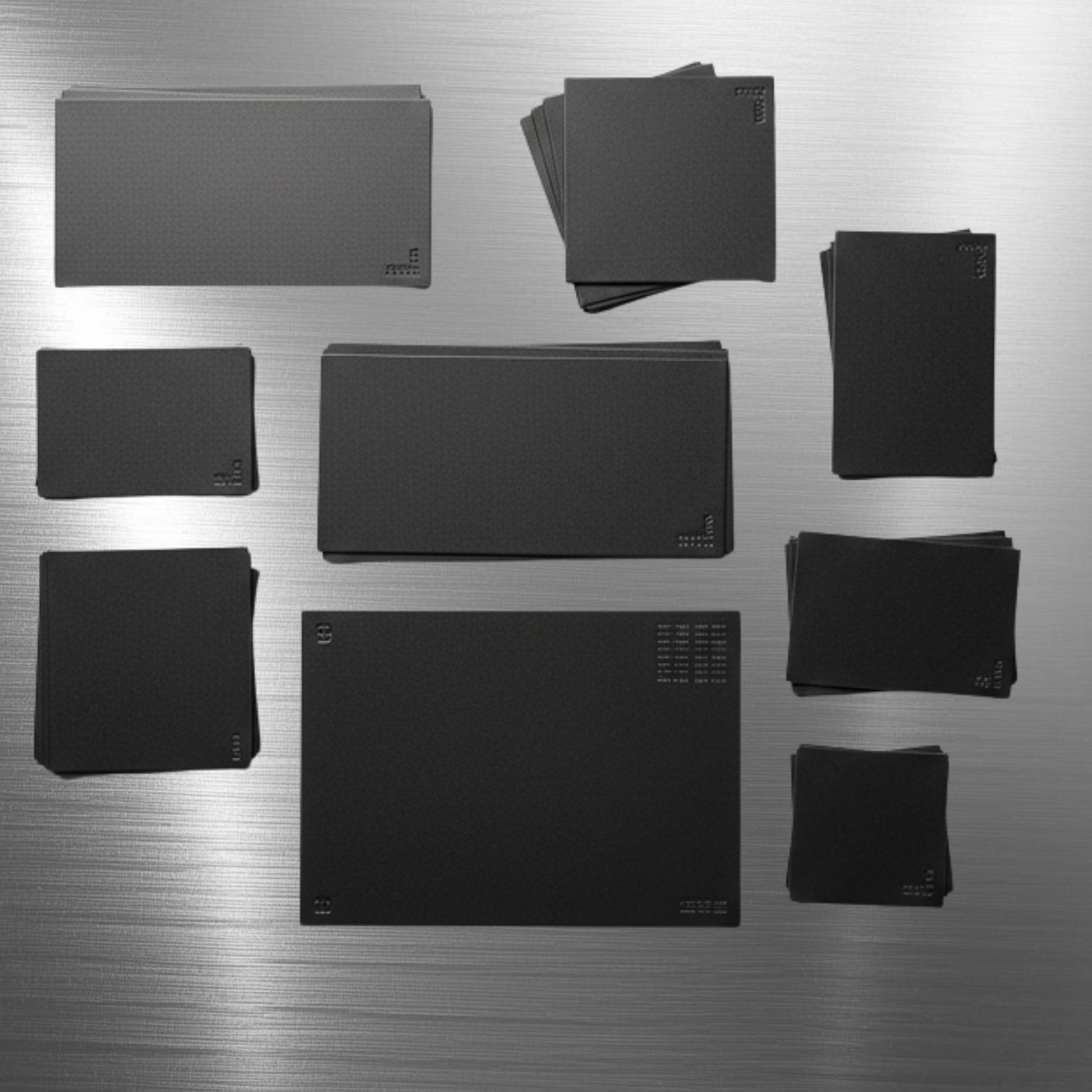

1mm Thick Titanium MMO Anode / electrode Sheet

1mm Thick Titanium MMO Coated Anode / Electrode Sheets

Note : Contact us directly if you need larger quantity, custom Size MMO anode / electrode than those listed above. We will be happy to assist you.

Titanium **MMO (Mixed Metal Oxide)** anodes are categorized as **Dimensionally Stable Anodes (DSA)** because the titanium substrate does not consume or change shape during the electrochemical process. The "magic" happens in the thin layer of noble metal oxides (typically Iridium or Ruthenium) thermally bonded to the surface.

Here are the defining characteristics that make them superior to traditional materials like graphite, lead, or high-silicon cast iron:

---

### 1. Exceptional Corrosion Resistance

The titanium substrate naturally forms a stable, protective oxide film. This allows the anode to operate in highly aggressive environments, including:

* **High-Chlorine Environments:** Resisting the corrosive effects of salt and bleach.
* **Acidic Conditions:** Particularly iridium-based coatings that survive in low-pH electrolytes.
* **Deep Groundbeds:** Enduring the chemical complexity of soil and moisture for decades.

### 2. High Current Density and Efficiency

MMO anodes have a very low **overpotential** (the energy barrier required to start a reaction).

* They can operate at high current densities while maintaining a stable voltage.
* This translates to lower power consumption and higher efficiency in industrial processes like electro-chlorination or electrowinning.

### 3. Dimensional Stability

Unlike graphite (which crumbles) or lead (which produces toxic sludge), MMO anodes maintain their physical dimensions.

* **Constant Gap:** In plating and water treatment, the distance between the anode and cathode remains identical throughout the life of the product, ensuring consistent quality.
* **Zero Sludge:** They do not contaminate the electrolyte with byproduct waste, which is vital for high-purity metal extraction.

### 4. Lightweight and High Strength

Since they are built on a titanium core, these anodes are significantly easier to handle than heavy cast iron or lead alternatives.

* A  diameter titanium MMO rod is much lighter and easier to install in subsea or deep-well applications than a cast iron equivalent of the same size.
* The mechanical strength allows them to be manufactured into complex shapes like **expanded mesh, ribbons, tubes, and wires**.

### 5. Long Operational Life

MMO anodes are designed for longevity, often rated by their **"Amp-Year"** capacity.

* In **Cathodic Protection**, it is common for these anodes to have a design life of **20 to 50 years**.
* The coating thickness can be customized: a thicker coating of mixed oxides directly correlates to a longer service life.

-
### Technical Limitations

* **Voltage Sensitivity:** The "breakdown voltage" of the titanium substrate is roughly **8V to 10V** in saltwater. If the voltage exceeds this limit without proper coating protection, the titanium itself may begin to pit.
* **Coating Fragility:** While the titanium is tough, the MMO coating is a ceramic-like layer. If it is scratched or chipped, the efficiency of the anode drops at that specific point.
