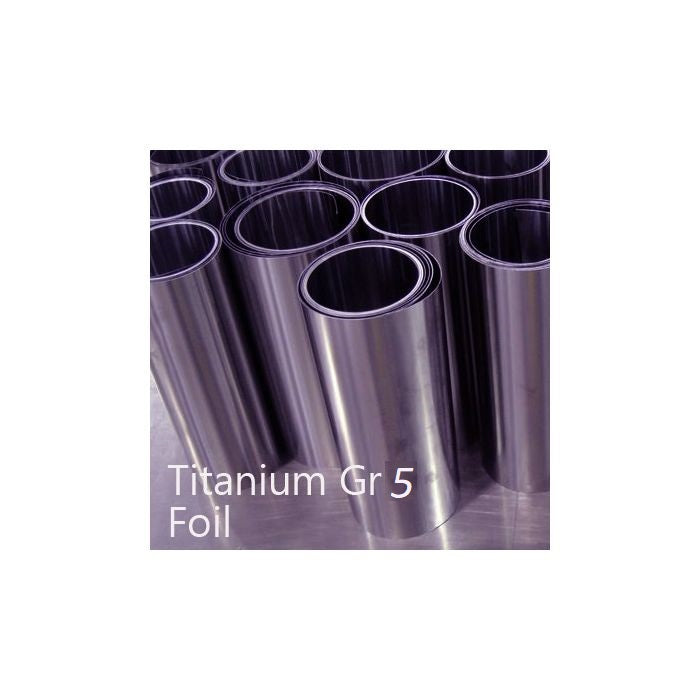

Titanium Aluminum Vanadium Foil
Grade 5 ( Ti6Al4V )
ASTM B265 ( Chemistry Only )
UNS R56400, WerkStoff Nr: 3.7165
Foil / Thin Sheet / Coil
Tensile and Yield Strengths (Annealed State)
Foil processing requires specialized cold-reduction passes and intermediate vacuum annealing, which yields a highly refined grain structure:
| Property |
Minimum Specification (ASTM B265) |
Typical Values (Foil Gauges) |
| Ultimate Tensile Strength (UTS) |
895 MPa (130 ksi) |
~950 – 1,050 MPa (138 – 152 ksi) |
| Yield Strength (0.2% Offset) |
828 MPa (120 ksi) |
~860 – 930 MPa (125 – 135 ksi) |
| Elongation (in 2 inches / 50mm) |
10% * |
~12% – 16% |
| Dispatch Estimate |
: 3-5 Working Days |
| Packaging |
: Free |
| Certification |
: Certificate of conformity or Mill Certificate provided. |
| Shipping |
: Free Shipping to anywhere in UK, Rest of the World by Courier. |
Note : Contact us directly if you need larger quantity, custom cut sheet sizes or full size sheets than those listed above. We will be happy to assist you.
