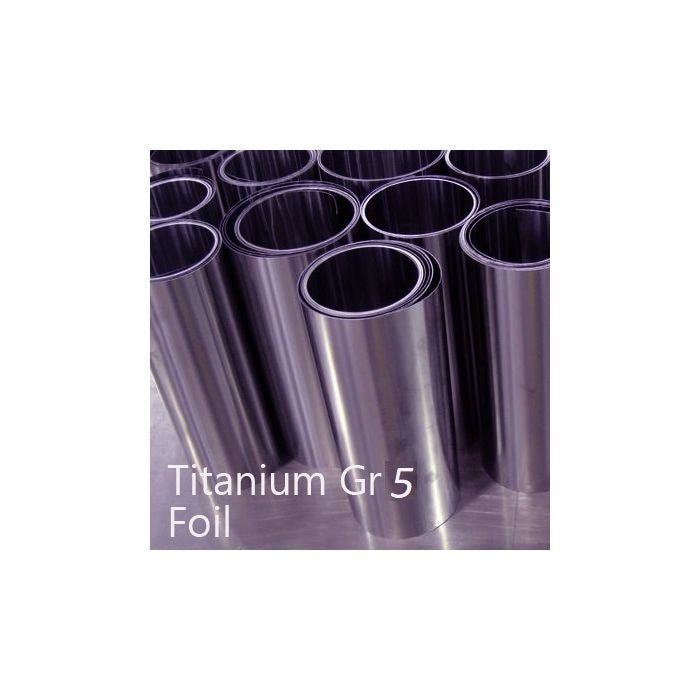

Titanium Grade 5 ( Ti6Al4V ) Foil - 0.30mm Thick

Titanium Aluminum Vanadium Foil
Grade 5 ( Ti6Al4V )
ASTM B265 ( Chemistry Only )
UNS R56400, WerkStoff Nr: 3.7165
Foil / Thin Sheet / Coil

Note : Contact us directly if you need larger quantity, custom cut sheet sizes or full size sheets than those listed above. We will be happy to assist you.

In space technology, Titanium Grade 5 ($Ti$-$6Al$-$4V$) foil is a high-performance material used where every milligram of weight must be justified. While Grade 2 foil is used for general shielding, Grade 5 is reserved for components that must endure the extreme mechanical stresses of launch and the harsh thermal cycling of the vacuum.

Below are the primary applications of Grade 5 foil in the SpaceTech sector:

1. Aerospace Honeycomb Structures

The most critical use of Grade 5 foil is in the fabrication of honeycomb sandwich panels.

• Application: Ultra-thin foils (often $0.050$ mm to $0.100$ mm) are corrugated and laser-welded to create a core that is then bonded between two titanium skins.

• Purpose: This creates structural panels for satellite buses and rocket fairings that offer maximum stiffness with minimal mass.

2. Thermal Protection Systems (TPS)

Spacecraft transitioning from the shadow of the Earth into direct sunlight experience temperature swings of several hundred degrees.

• Heat Shields: Grade 5 foil is used as a reflective outer layer in Multi-Layer Insulation (MLI) blankets. It protects delicate electronics from solar radiation and engine heat.

• Engine Shrouds: Thin foils act as flexible heat barriers around thrusters and propulsion modules, preventing radiant heat from damaging surrounding composite structures.

3. Pressure Vessel Components

• Burst Discs: In satellite propulsion systems, Grade 5 foil is used to manufacture precision-engineered burst discs. These are safety devices designed to rupture at a specific pressure to prevent tank explosions.



• Diaphragms: Used in propellant tanks to separate the fuel from the pressurant gas. The foil must be thin enough to flex but strong enough to remain leak-tight under high pressure.

4. Solar Array Mechanisms

• Deployment Strips: Because Grade 5 has excellent "spring-back" properties (elasticity), thin strips of foil are used in the mechanisms that unfurl solar panels once a satellite reaches orbit.

• Hinge Reinforcement: Provides high-strength reinforcement for lightweight folding structures that must operate reliably in zero gravity.

*Ai  generated content.
